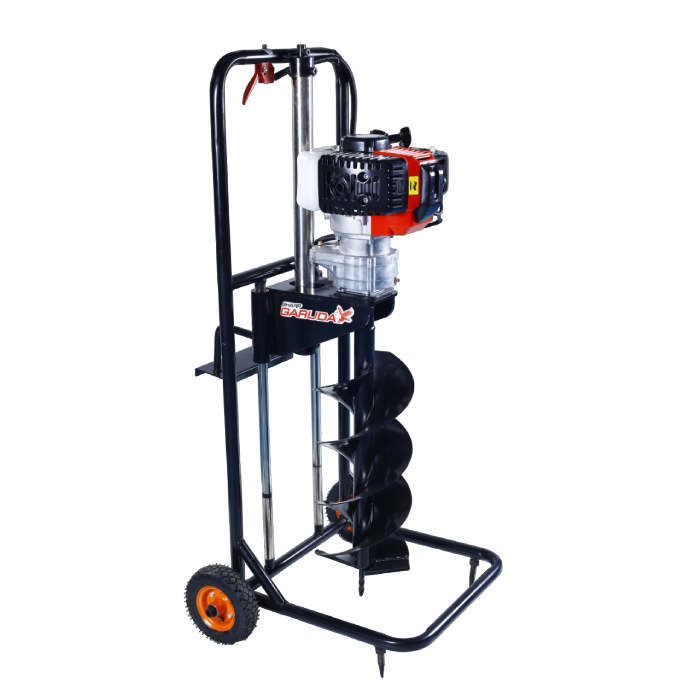

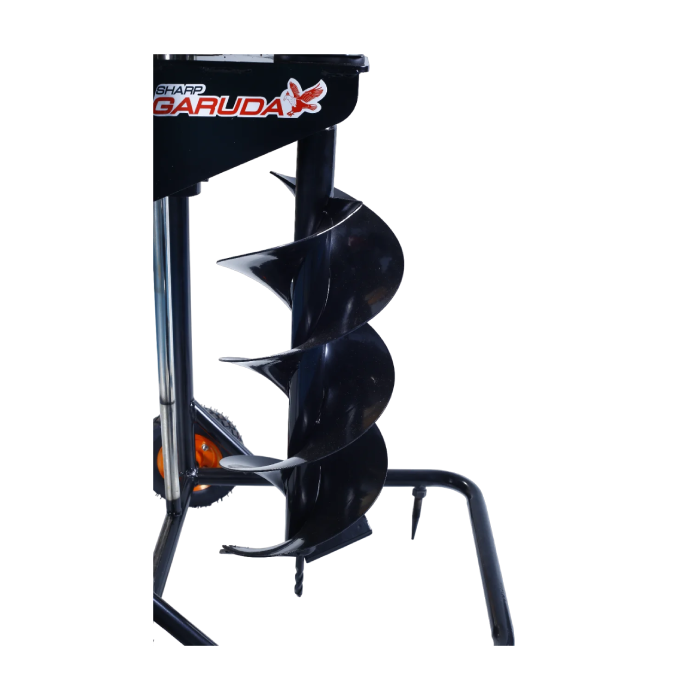

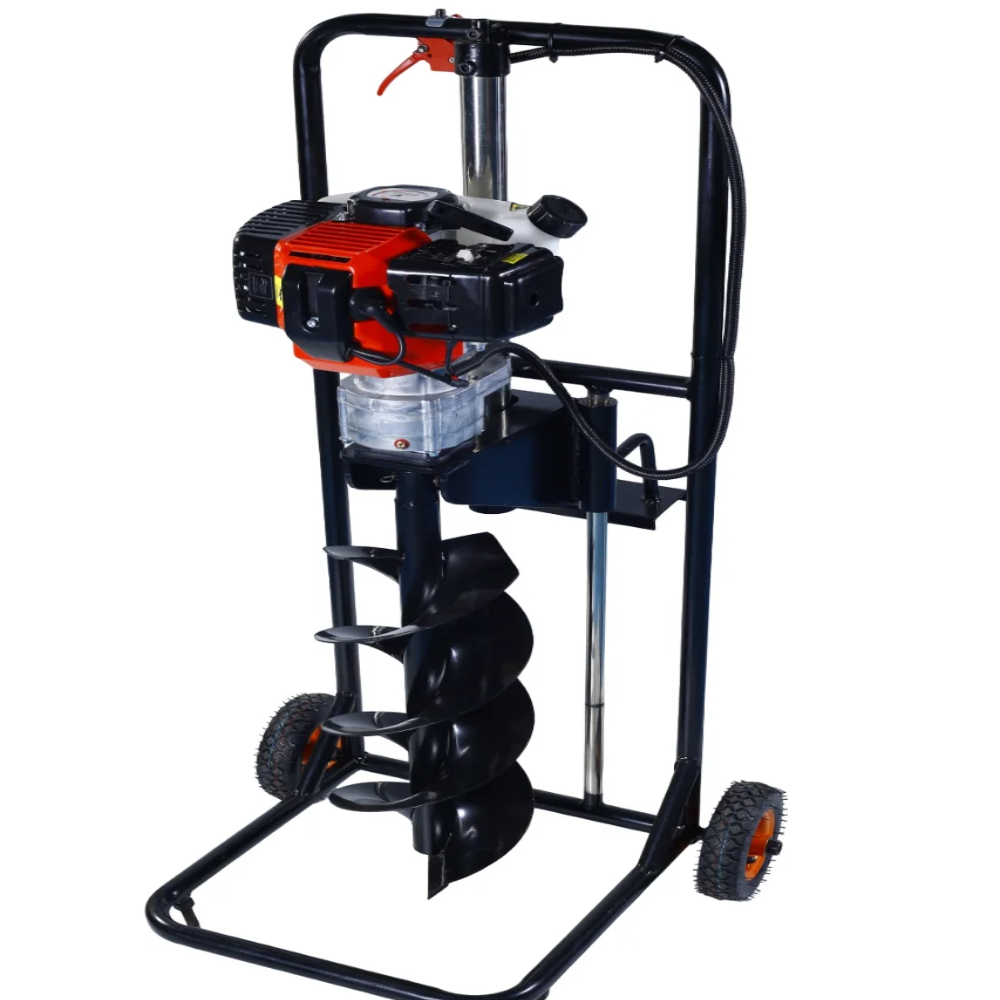

TROLLEY TYPE EARTH AUGER

It is ideal for use in Plantations, Forestry, and Construction etc. It is equipped with powerful engine for fast and efficient drilling.

• Operated by one-person. Reliable, High/Strong power & low fuel consumption engine. Strong and Precisely Fabricated Bit.
• Portable-type, light weight, easy to carry makes it suitable for wild field operations.
• Widely used in the garden, planting, planting trees, geophysical exploration, road construction, etc.
• Auger is designed for professional operation.

  Specs

  PARTICULARS	EARTH AUGER TROLLEY -150		EARTH AUGER TROLLEY-200	EARTH AUGER TROLLEY-250	EARTH AUGER TROLLEY-300
  MODEL	SG-TR 52/150		SG-TR 52/200	SG-TR 63/250	SG-TR 63/300
  WEIGHT (Kg)	20 KG		20 KG	23 KG	24 KG
  REDUCTION RATIO	40:01:00
  TRANSMISSION TYPE	CENTRIFUGAL FRICTION CLUTCH
  AUGER BITS (MM)	Dia-150MM		Dia-200MM	Dia-250MM	Dia-300MM
  OPERATION TYPE	SINGLE OPERATION
  ENGINE TYPE	TWO STROKE / AIR COOLED
  ENGINE MODEL	1E44F-2A			1E48F
  POWER (Kw/r/min)	1.4 / 6500			2.0 / 7500
  DISPLACEMENT  (CC)	51.7			63.3
  FUEL	PETROL 2 T OIL MIX (30:1)
  IDLE SPEED	3000 +_ 150 R/MIN
  CLUTCH SPEED	4200 +- R/MIN
  IGNITION TYPE	ELECTRONIC (CDI) / MAGNETO
  CARBURETOR TYPE	DIAPHRAGM
  TANK CAPACITY	1 LITRE			1.45 LITRE
